Adjustable spool payoff brake
A manufacturing-development study exploring an adjustable resistance mechanism for a bench-mounted reference reel.
Braking torque, loads, heat, fits and safe service are unvalidated. The reference spool and stock are omitted from the CAD model; clamp parts retain their reference positions.
What the concept explores
A spring-adjusted friction stack illustrates a resistance path from a reference reel through the shaft, keyed rotor, and stationary supports.
Motion, components, and assembly

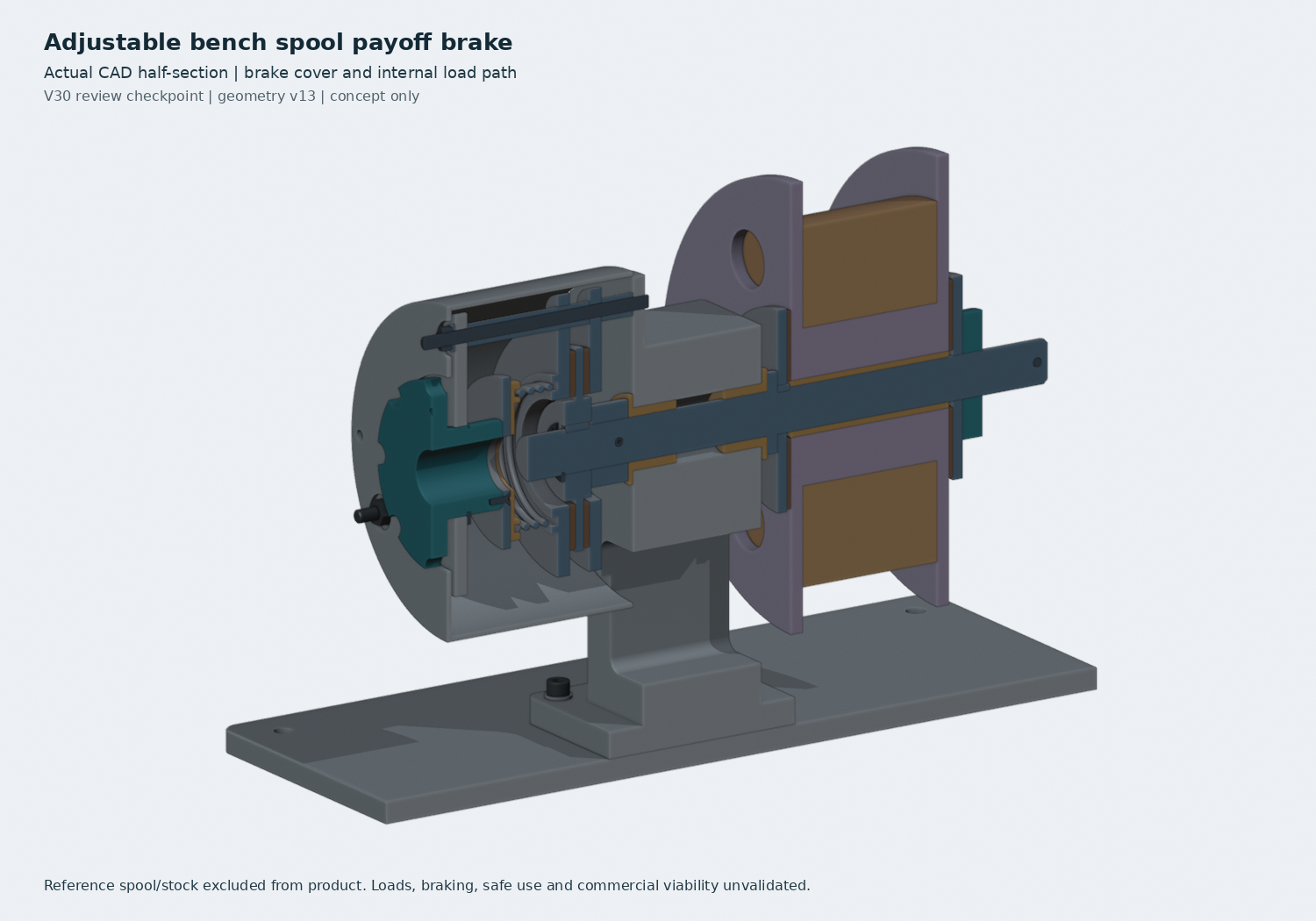

The overview combines mechanism motion, adjustment, staged component separation, and a CAD section. These views explain the arrangement rather than predict physical braking performance.
Look inside the arrangement
Manufacturing development ahead
Define stock and spool requirements, friction materials, load paths, adjustment range, guarding, thermal behavior, manufacturing fits, and a physical qualification plan before operating use.
These models support manufacturability discussions and domestic-production planning. A production supplier, process, inspection plan, and any required qualified engineering approvals must be established for a real project.
Study scope
Concept CAD for review. Braking torque, loads, heat, fits and safe service are unvalidated. The reference spool and stock are omitted from the CAD model; clamp parts retain their reference positions.
To protect customer confidentiality, this model and animation are hypothetical demonstrations, not customer projects.
